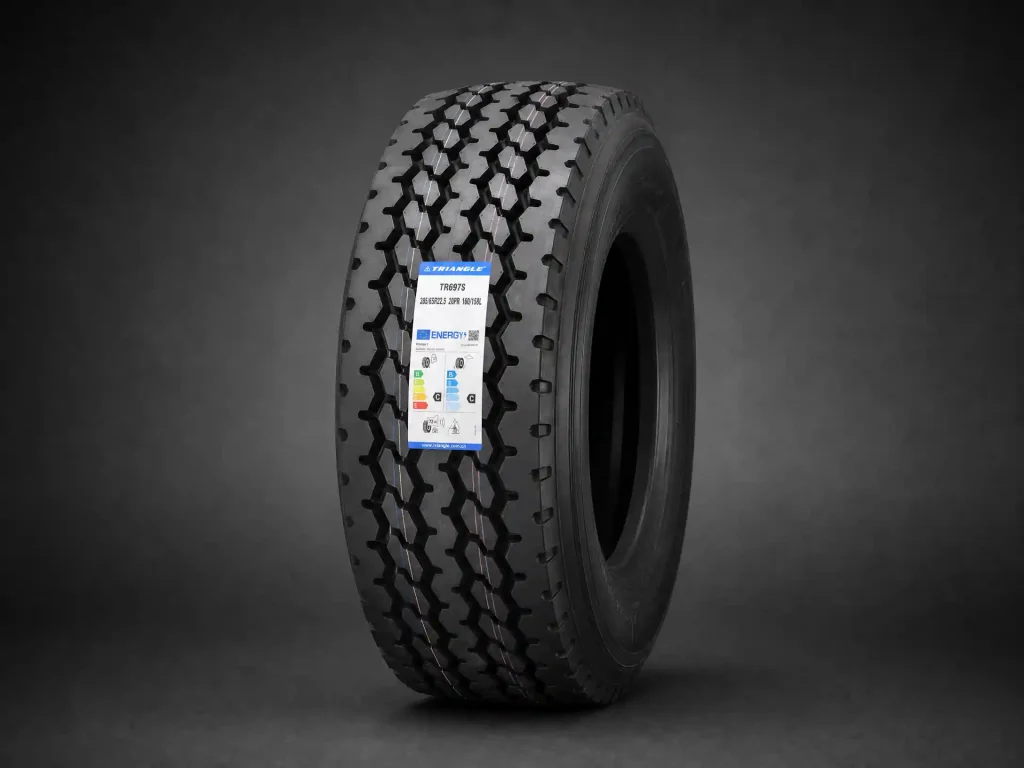

385/65R22.5
Section Width: 385 mm
Aspect Ratio: 65
Rim Diameter: 22.5 inches
Ply/Load Range: 20PR / Load Range L (equivalent to 20 ply)
Load Index & Capacity: Typically 160/158L (approx. 4,500 kg to 5,000 kg max load per single/dual setup)
Speed Rating: L (up to 120 km/h or 75 mph)
Maximum Pressure: 130 PSI (9 bar)
Features
Load Capacity: High load index (typically 160/158L or up to 162/160L), supporting heavy weights safely—around 5,000 kg (11,000 lbs) single and 4,500 kg (9,920 lbs) dual depending on the exact pattern.
Speed Rating: L-rated, meaning it is certified for speeds up to 120 km/h (75 mph).
Tread Design & Depth: Deep aggressive tread (ranging from 20/32″ to 28/32″ depending on the specific TR692/TR697 variant) featuring integrated stone ejectors to prevent casing damage.
All-Weather Traction: Optimized wide circumferential grooves efficiently clear water from the contact patch to reduce hydroplaning risk and boost wet-road braking.
Wear Resistance: Engineered for even footprint pressure distribution, which limits uneven shoulder wear and maximizes total service mileage.
