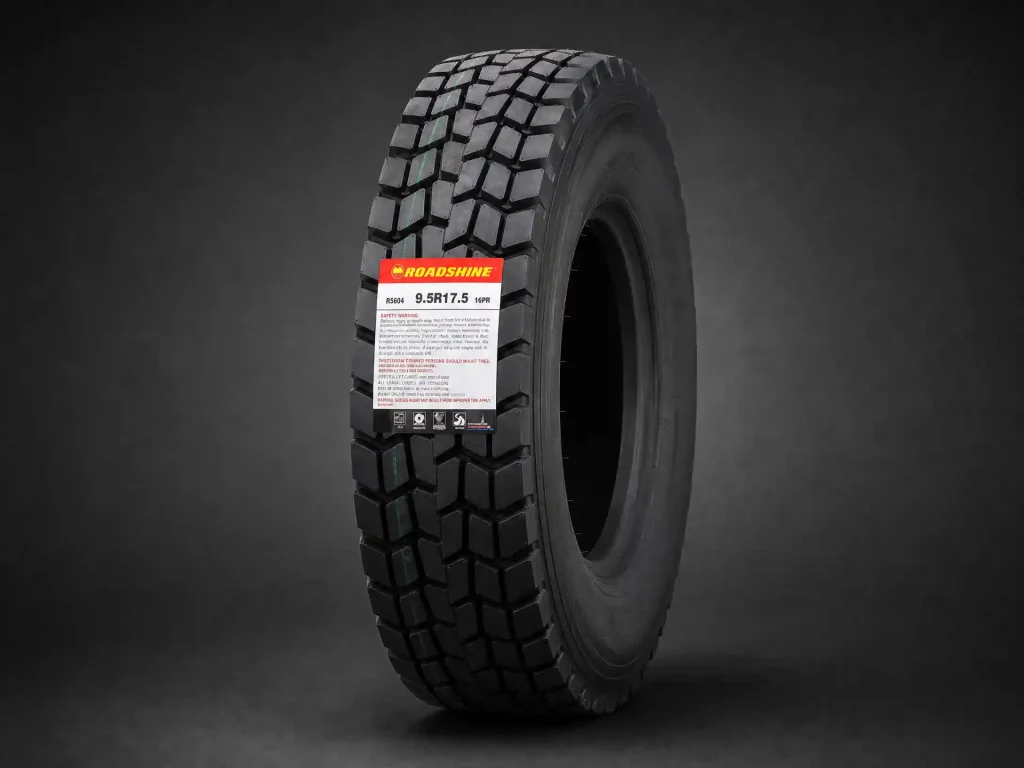

Size Designation: 9.5R17.5 (9.5-inch section width, radial construction, 17.5-inch rim diameter) [1]
Load Index & Ply Rating: Typically rated at load index 132/130L (or up to 139/137 depending on the exact manufacturing spec) with a 16-ply or 18-ply rating
Maximum Load Capacity: Single load up to 2,000 kg (4,410 lbs) / dual load up to 1,900 kg (4,190 lbs) for standard 132/130 variants; higher ratings can reach up to 2,430 kg
Speed Rating: Index L (maximum speed of 120 km/h or 75 mph)
Tread Depth: Frequently manufactured with a deep tread depth of roughly 15 to 16/32nds of an inch for extended wear life
Application: Primarily used for steer or all-position service on regional distribution trucks and commercial buses requiring high directional stability
Features
Features a 9.5-inch section width, radial (R) construction, and a 17.5-inch rim diameter.
Ply Rating: Available in heavy-duty 16-ply and 18-ply options to handle demanding commercial loads.
Load Capacity: Typically carries a load index of 132/130 (supporting roughly 2,000 kg in single configuration and 1,900 kg in dual setup).
Speed Rating: Speed index L, allowing safe maximum vehicle speeds up to 120 km/h.
Durability: Engineered with a robust carcass structure to resist wear, punctures, and long-distance heat buildup.
